Product Description

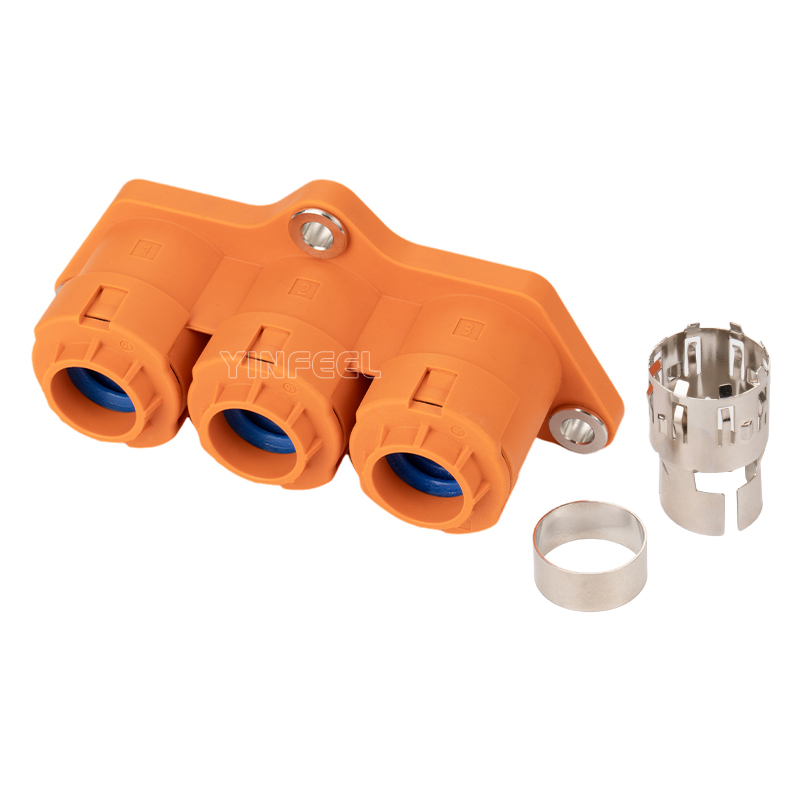

| Type: | Through hole connector |
| Model: | IF-GK120-3-50 |
| Matchable cable size: | 50mm² cable |
| Terminal crimp retention force: | 50mm²/2800N |

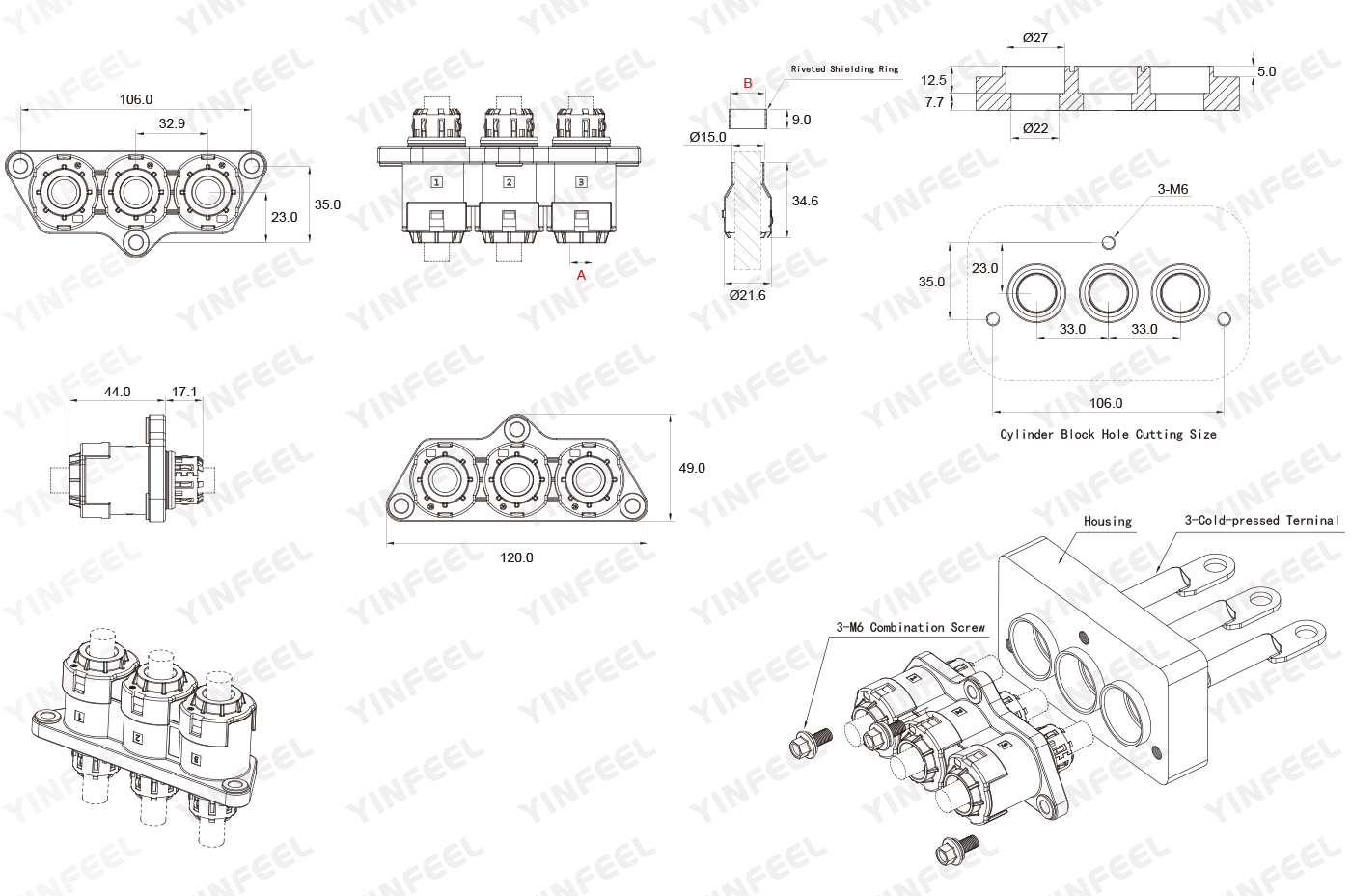

| Rubber ring aperture(A): | Φ14.5 |
| Riveted shielding ring(B): | Φ19.5 |
| Contact resistance: | ＜1MΩ |
| Insulation resistance: | Test voltage is 500VDC with a test duration of 15 seconds. The resistance between any two adjacent terminals of the test component must exceed 100mΩ. |
| Insulation and voltage resistance: | 3000V AC |
| Level of protection: | IP67 |
| Insulating material: | PA66+GF |
