Product Description
| Model (Full Set) | Plug | Socket |

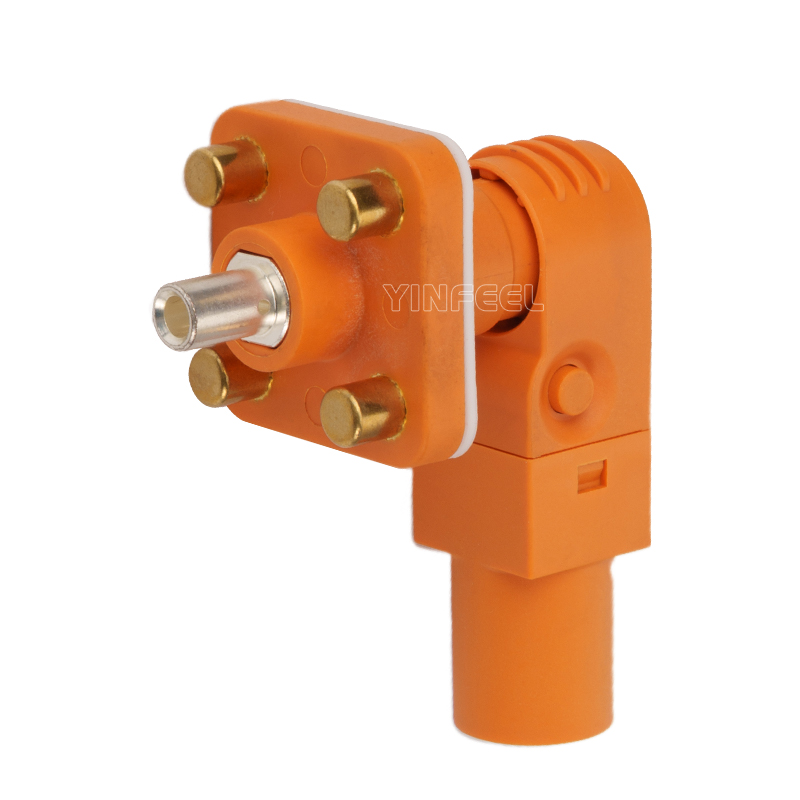

| IF-PA-IM-05706A-TH06-PS | IF-PA-IM-05706A-P | IF-PA-IM-057A-TH06-S |

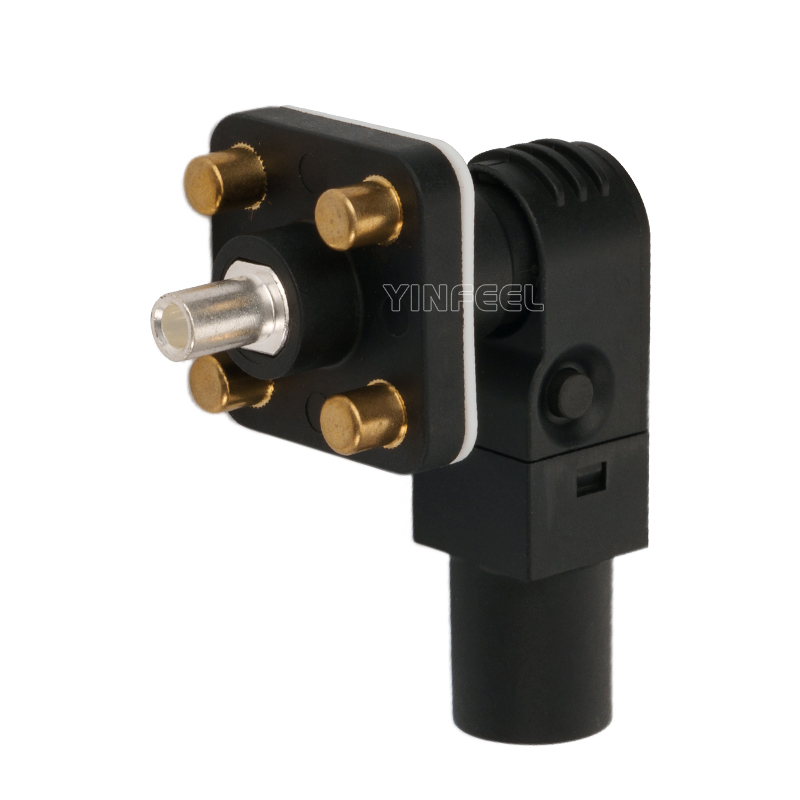

| IF-PA-IM-05706D-TH06-PS | IF-PA-IM-05706D-P | IF-PA-IM-057D-TH06-S |
| IF-PA-IM-05716A-TH16-PS | IF-PA-IM-05716A-P | IF-PA-IM-057A-TH16-S |

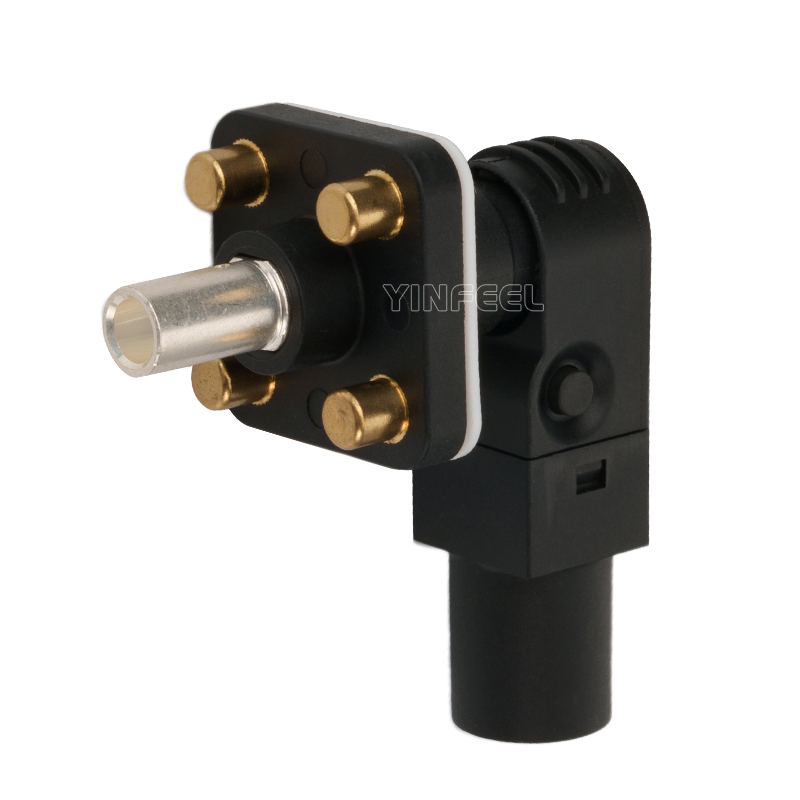

| IF-PA-IM-05716D-TH16-PS | IF-PA-IM-05716D-P | IF-PA-IM-057D-TH16-S |

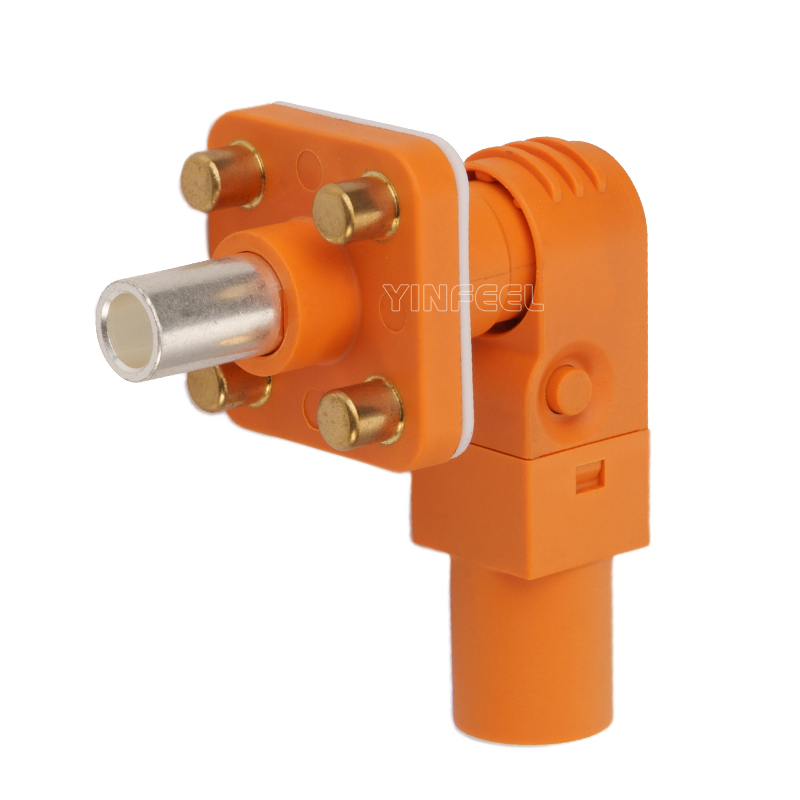

| IF-PA-IM-05725A-TH25-PS | IF-PA-IM-05725A-P | IF-PA-IM-057A-TH25-S |

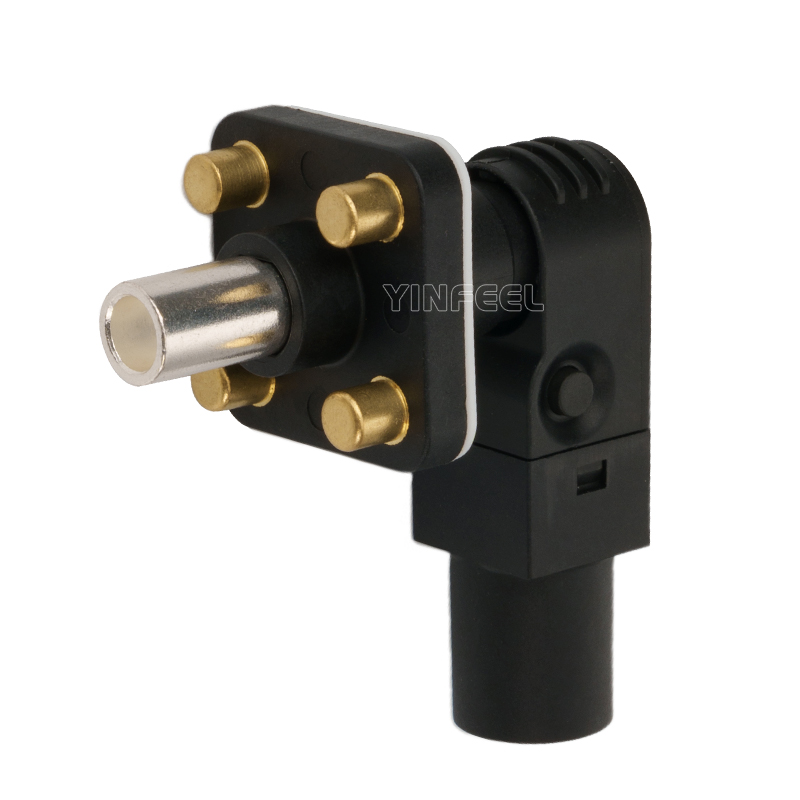

| IF-PA-IM-05725D-TH25-PS | IF-PA-IM-05725D-P | IF-PA-IM-057D-TH25-S |
YINFEEL
| Plug | IF-PA-IM-05706A-P | IF-PA-IM-05706D-P | IF-PA-IM-05716A-P | IF-PA-IM-05716D-P | IF-PA-IM-05725A-P | IF-PA-IM-05725D-P |
| Material: | PA66/T2 Copper/Silver Plated | |||||
| Current Rating: | 48A | 48A | 100A | 100A | 120A | 120A |
| Voltage Rating: | 1000VDC Max. | |||||

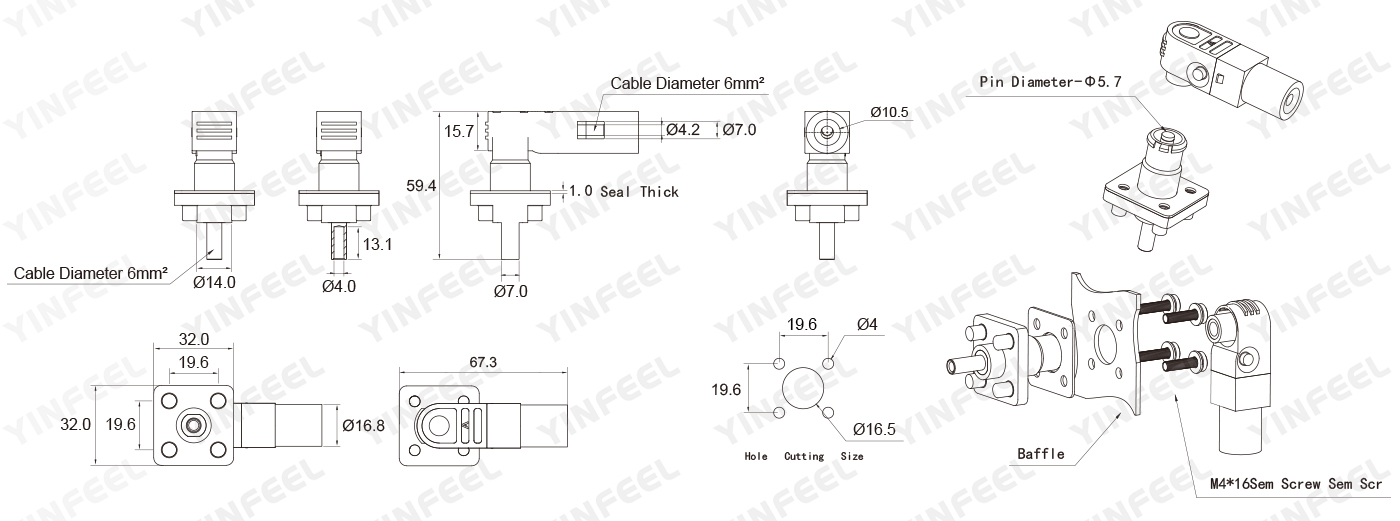

| Pin Diameter: | Φ5.7 | |||||
| Matchable Cable Size: | 6mm² | 6mm² | 16mm² | 16mm² | 25mm² | 25mm² |
YINFEEL
| Socket | IF-PA-IM-057A-TH06-S | IF-PA-IM-057D-TH06-S | IF-PA-IM-057A-TH16-S | IF-PA-IM-057D-TH16-S | IF-PA-IM-057A-TH25-S | IF-PA-IM-057D-TH25-S |
| Material: | PA66/T2 Copper/Silver Plated | |||||
| Current Rating: | 48A | 48A | 100A | 100A | 120A | 120A |
| Voltage Rating: | 1000VDC Max. | |||||
| Pin Diameter: | Φ5.7 | |||||
| Matchable Cable Size: | 6mm² | 6mm² | 16mm² | 16mm² | 25mm² | 25mm² |
