Product Description

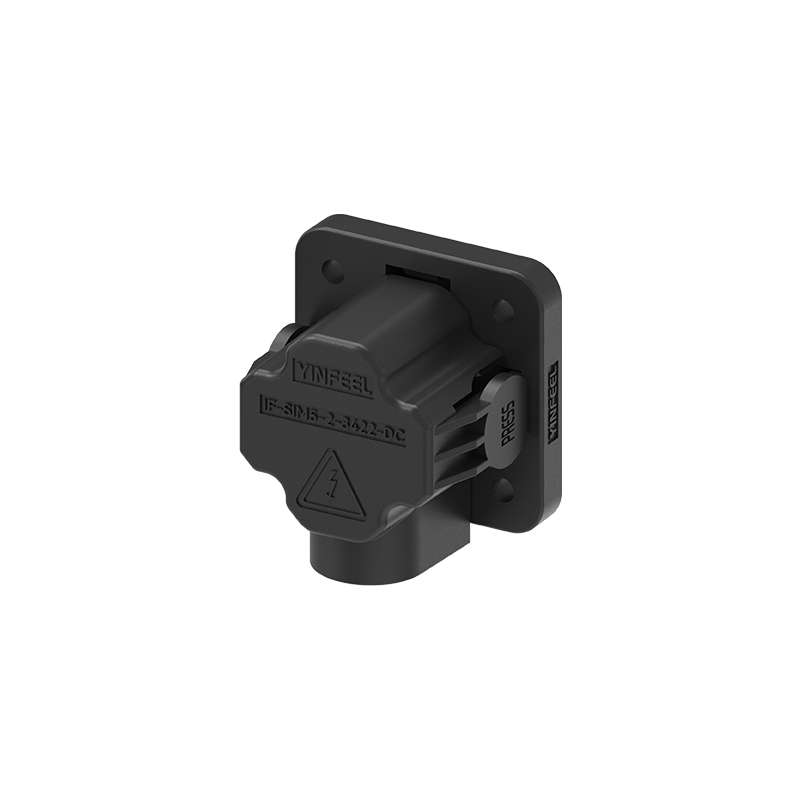

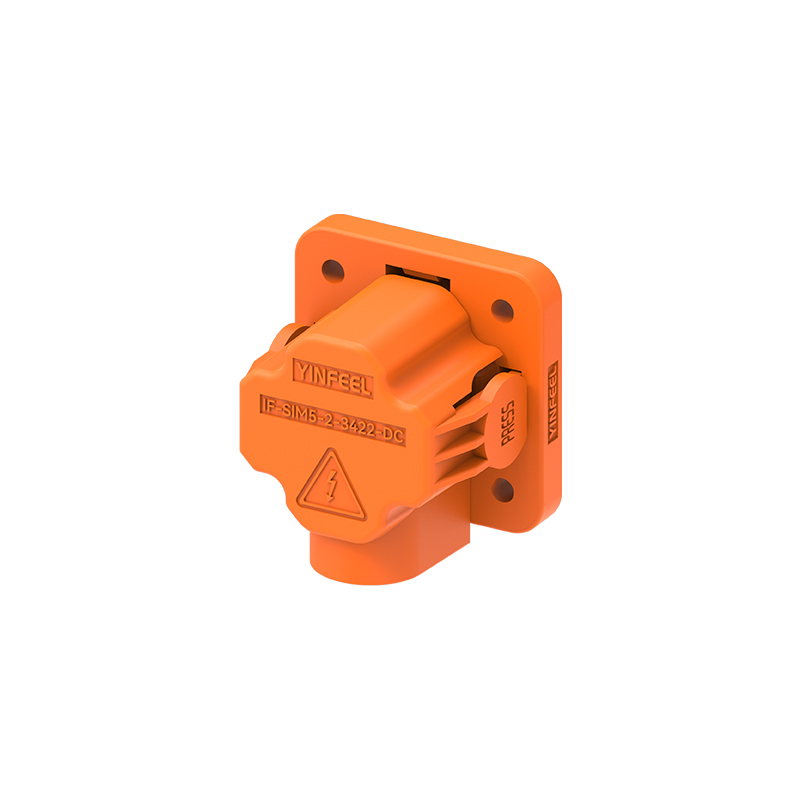

IF-FM5-3422-50A-DC Through-wall terminals are widely used in applications requiring through-wall solutions: power supplies, filters, electrical control cabinets, and other electronic devices. They have good insulation performance and a high level of protection. Users only need to connect externally, eliminating many unnecessary wiring steps.
| Type: | Square shaped wall-through type terminal |
| Model: | IF-FM5-3422-50A-DC |
| Material: | PA66/H59 Brass |
| Current rating: | 50A |
| Voltage rating: | 1000V DC Max. |
| Dielectric strength: | 3000V |
| Thread diameter: | M5 |
| Installtion screw: | M4 |
| Color: | orange/black |
